Heat exchanger solves icing issues

Munters expertise needed

During the heat exchanger design phase, Munters had many factors to consider. First was flow; the hot flow was about 1/10th of the cold flow and had a very high ramp rate. Then, the customer required the unit to fit into a very tight space that required special connection sizes to adapt to their ductwork. Finally, since the application was preheating turbine air, the inlet air had to be free of debris, which required the heat exchanger to be very clean.

The Munters solution

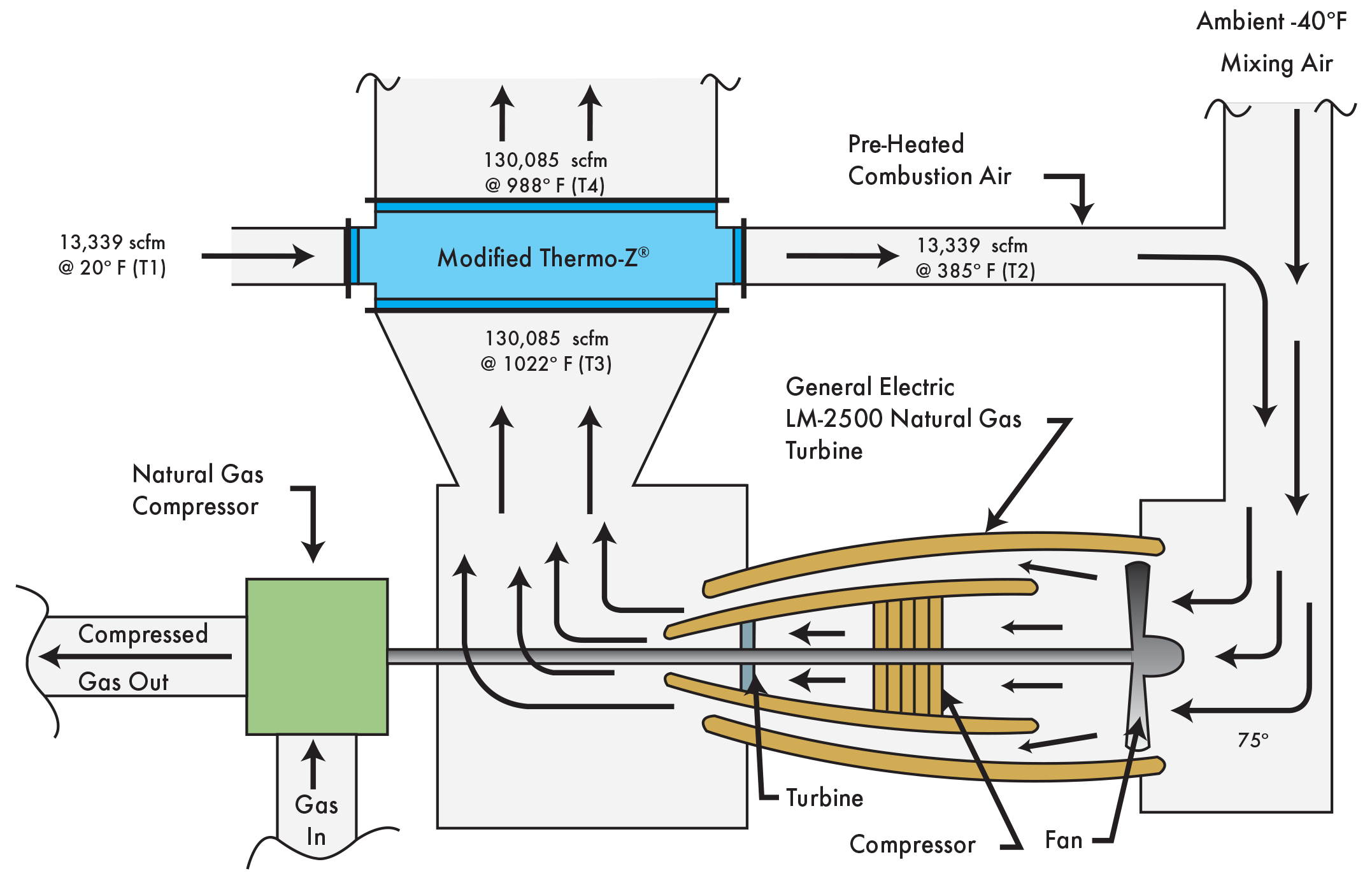

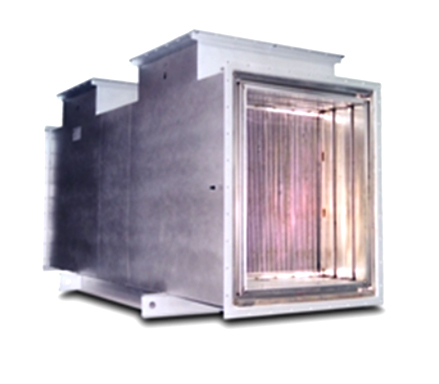

The solution for this turbine manufacturer was the Munters Thermo-Z cross-flow heat exchanger with side ribs. The Thermo-Z was designed with tight spacing on the hot side and wide spacing on the cold side. This type of design provides efficiency despite uneven airflows. The unit was made with heavy-gauge (.063 in.) plates and internal expansion compensation so it could withstand high ramp rates. To ensure the highest level of cleanliness prior to shipment, the unit was specially cleaned with brushes and high-pressure air, and then sealed. A happy customer To adhere to the turbine’s rigorous standards, the heat exchanger was inspected several times prior to installation to ensure the highest level of product quality. A successful final inspection satisfied the customer; they were very happy with the final product and glad they chose Munters.
